An angle stop is a space-saving, L-shaped shutoff valve where a water line connects to a fixture. You will find these valves under sinks, behind toilets, and at many appliance connections. A functioning Plumbing Angle Stop lets you isolate one fixture without shutting off the main supply. That means fixture swaps can be completed faster.

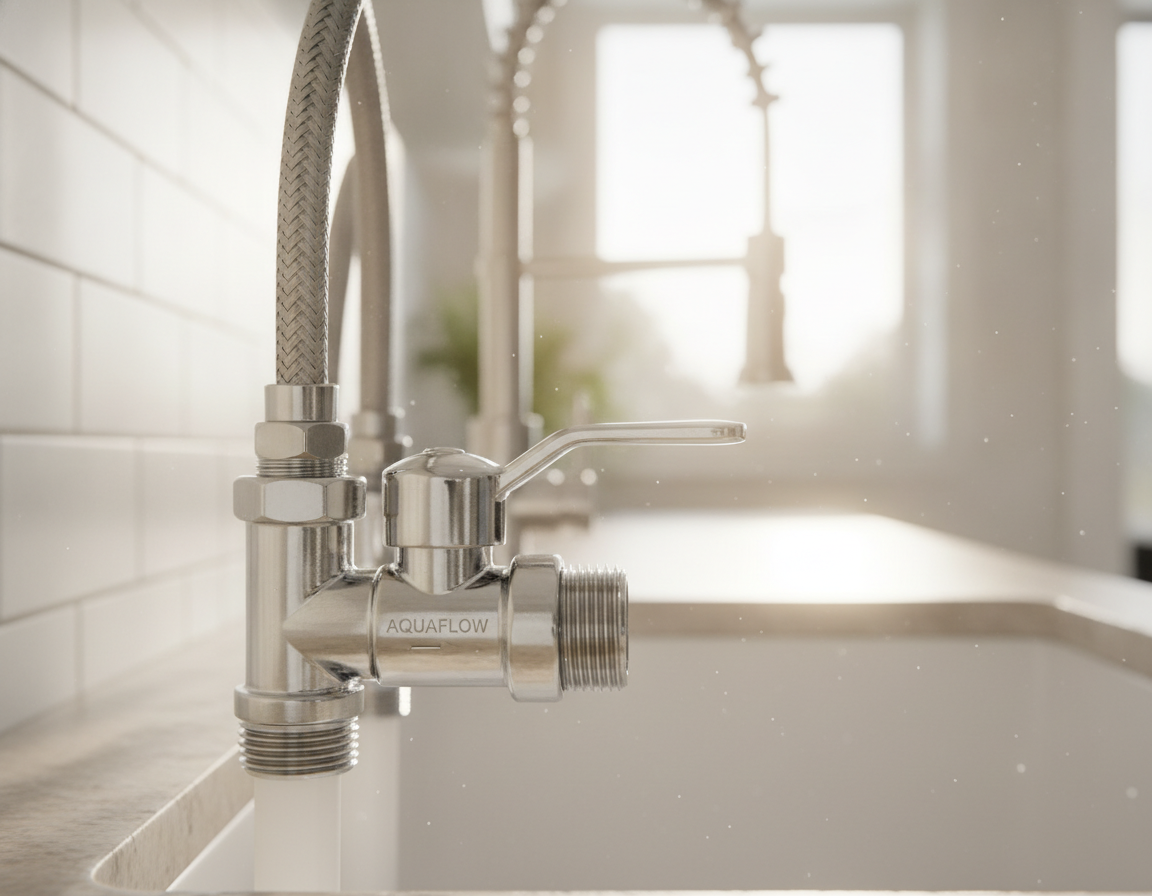

Angle Valve For Sink
In many homes, angle stops measure about 3–6 inches and redirect water at a 90-degree angle toward the fixture. Today’s installations often use quarter-turn, ball-style Angle Stop Valve models. They are faster to operate and commonly provide longer service life. When an angle stop becomes stiff, replacement can prevent water-damage risk and make future service easier.
Key Takeaways
- A Plumbing Angle Stop allows a single fixture to be isolated while the rest of the home stays supplied.
- Angle Stops Plumbing are usually found beneath sinks, behind toilets, and near fixtures where quick access matters.
- Most Angle Stop Valve units are compact, often 3–6 inches tall, and redirect water at a right angle.
- Quarter-turn models are commonly preferred because they offer dependable performance.
- Any valve that sticks should be replaced before it causes larger water problems.
What An Angle Stop Is And Why It Matters
An angle stop is a compact shutoff valve placed where the supply line connects to a fixture. It controls water to a single fixture so repairs, upgrades, or replacements can happen without closing the whole-house main. Homeowners, plumbers, and building inspectors rely on it to keep repairs quick and contained.
Definition And Simple Explanation
An angle stop is a 90-degree valve placed at the fixture supply. Angle Stop Valves come in several styles, including older multi-turn stem designs and newer quarter-turn ball designs. The Plumbing Angle Stop fits neatly under sinks and behind toilets while saving space.
Common Angle Stop Locations In A Home
Plumbing Angle Stops are most often installed below bathroom vanities and kitchen sinks. They sit at the back of cabinets where the supply line enters. Toilet angle stops are normally mounted on the wall behind or beside the toilet tank. Angle stops may also appear at appliance connections, including dishwashers, ice makers, washing machines, and some water-heater cold-supply lines.
Homeowner Benefits Of Angle Stops
A major advantage of an Angle Valve For Sink is fixture isolation. With a working Plumbing Angle Stop, you can shut off a single sink, toilet, or appliance line while fixing a leak or replacing a fixture. This helps prevent minor leaks from becoming major water-damage events and keeps household disruption lower.
Another advantage is convenience. Angle Stops Plumbing are space-saving, quick to access, and reduce repair downtime. Turning the valve periodically helps keep it from sticking. Replacing old multi-turn stops with quarter-turn Angle Stop Valve models can make emergency shutoff less stressful.
How An Angle Stop Differs From An Angle Seat Valve
Residential angle stops are made for fixture-level potable water service. They are suited to sinks, toilets, and everyday household appliances. The industrial Angle Seat Valve is different. It handles high-pressure, high-temperature, or corrosive media found in steam, chemical, and HVAC systems. Angle seat valves use metal seats and pistons for durability in demanding environments, while an Angle Stop is a simple residential fixture shutoff.
Types Of Angle Stops And How To Choose One
Selecting the correct angle stop involves comparing materials, operating style, connection type, and extra features. The following overview helps homeowners and plumbers choose Plumbing Angle Stops that are durable.
Angle Stop Materials
Brass is the standard material for Angle Stops. Because it resists corrosion and may last 10–20 years, brass is a strong choice for Quarter-Turn Angle Stops. Stainless steel bodies are useful in humid basements, coastal locations, and exposed areas where rust resistance matters. Plastic-bodied stops cost less but are less durable and may degrade in hot-water loops. For potable water lines in the United States, select a Lead-Free Angle Stop that meets applicable federal and state requirements.
Valve Operation Styles
Quarter-turn valves typically use a ball or disc mechanism and operate with one 90-degree turn. They offer fast shutoff and better resistance to mineral buildup, which makes them useful for frequent operation and emergencies. Multi-turn valves rely on a rising stem and need several turns to open or close fully. They provide finer flow control but are more likely to leak or stick in older homes.
Connection Types
Compression Angle Stop fittings use a nut and ferrule, making them common for copper and CPVC stub-outs. They are popular in remodels because they can be installed without soldering or open flame. Sweat Angle Stop joints are soldered for a slim, permanent seal and work well in tight spaces where a torch is acceptable. FIP-threaded valves screw onto male adapters and require PTFE tape or pipe sealant. Push-Fit Angle Stop products, including SharkBite-compatible models, slip onto copper, CPVC, or PEX for tool-free installs. Push-fit designs are handy for DIY jobs and cramped spaces, while Compression Angle Stop fittings are common where future removal or rework may be needed.
Extra Angle Stop Features
Some Angle Stop Valve models include a Water Hammer Arrestor Angle Stop. These use a piston or air chamber to absorb shock from quick-closing fixtures and reduce noisy banging. In humid or coastal locations, a Coastal Angle Stop with corrosion-resistant finishes, stainless internals, and anti-seize stems can improve service life. Lead-Free Angle Stop markings on the body confirm potable-water compliance. Select a model that matches your pipe type and service expectations to avoid premature failure.
Plumbing Angle Stops Guide
Plumbing angle stops manage fixture water flow using a compact right-angle layout. Choosing the right size and style affects performance, ease of service, and compliance. Below, we cover common markings, placement, potable-water standards, and modern standardization trends.
How To Read Angle Stop Sizes And Markings
In most homes, the inlet side is commonly 1/2 inch nominal, while the outlet to the fixture is often 3/8 inch compression. Valve markings often appear as 1/2 x 3/8, 1/2” MIP x 3/8” OD, or similar size combinations. Those markings show which side connects to the supply pipe and which side connects to the fixture hose. Some valves are marked 3/8 COMP to indicate a compression outlet. Before buying, confirm that the inlet matches your supply piping, whether it is 1/2 FIP, 1/2 MIP, 1/2 sweat, or another style.
Typical Placement In The Home
Angle stops are commonly found under kitchen and bathroom sinks and behind toilets. Dedicated stops may also serve dishwashers, ice makers, washing machines, water heaters, and other appliances. Under-sink valves are commonly located at the rear of cabinets, while toilet stops are generally visible near the wall behind the tank.
Potable Water Code And Safety Notes
In the U.S., valves for drinking-water lines must meet lead-free standards for wetted surfaces. Look for a Lead-Free Angle Stop with compliant markings and documentation. Contractors must follow local codes and provide test certifications and warranties to support compliance.
Industry Trends And Recommended Standard
Modern Angle Stops often use quarter-turn ball designs. A Quarter-Turn Angle Stop provides fast shutoff in emergencies and, when made from brass, can offer long service life. Experts often recommend a brass 1/2 x 3/8 angle stop for sinks and toilets for easier stocking and maintenance. Models with arrestors and other potable-water protection features are increasingly common in new installations.
Practical Checklist For Selection
- Confirm Valve Markings for inlet type and outlet size before purchase.
- Make sure the Angle Valve For Sink or toilet stop matches the supply hose, fixture threads, and tank connection.
- Use a Lead-Free Angle Stop whenever the valve is installed on a potable-water line.
- Standardize on Quarter-Turn Angle Stop 1/2 x 3/8 units for easier repair and reliability.
How To Install And Replace Angle Stops Safely
Before working on a plumbing angle stop, decide whether the main water supply needs to be shut off. Only shut the main if the existing stop will not close fully, is damaged, or is frozen. For most replacements, you can isolate the line using the valve under the sink. Always relieve pressure by opening a downstream faucet, and keep towels plus a bucket nearby.
Before the repair begins, collect the necessary tools, fittings, and supplies. You will need an adjustable wrench, backup wrench, tube cutter, and deburring tool. Emery cloth for copper, PTFE tape for threaded joints, a marker, and a flashlight are also useful. For push-fit work, use the manufacturer’s push-fit angle stop and a PEX stiffener where needed; for compression jobs, keep spare ferrules and nuts available. Penetrating oil can help with stuck fittings, while a heat shield is useful around sweat connections.
Tool Checklist:
- Adjustable wrench and backup wrench
- Tube cutter and deburring tool
- Thread tape and insertion-depth marker
- Push-fit angle stop and PEX stiffener
- Spare ferrules, nuts, penetrating oil, and towels
Each connection type requires its own installation method. For compression, slide the nut and ferrule onto the pipe, then seat the valve against the pipe shoulder. Hand-tighten the nut and finish with a 1/4–1/2 turn using a wrench. Use a backup wrench on the valve body or outlet so the stub-out does not twist.
For push-fit installation, make a square pipe cut and deburr the end thoroughly. Mark the insertion depth and push the valve straight on to the depth mark. Tug lightly to confirm the fitting locked. Push-fit angle stop fittings can work with copper, CPVC, and PEX, but PEX may require a stiffener depending on the product.
Sweat angle stop connections need careful preparation and heat control. Remove or protect seals, clean and flux the pipe and valve cup, heat evenly, and apply solder properly. Once the joint cools, wipe away flux residue and inspect the solder bead. Use a heat shield or remove seals to prevent damage during sweating.
For threaded connections such as a FIP angle stop, wrap male threads with PTFE tape using three to four wraps and start the valve by hand to avoid cross-threading. Tighten the valve until it is sealed and aligned, connect the supply line, and test with water slowly.
After installation, turn the water back on slowly while watching every joint. Open the angle stop and fixture in stages rather than all at once. Use a dry towel or tissue to reveal small weeps around fittings. Operate the valve, let pressure stabilize, and inspect again for slow leaks.
Several common mistakes can cause leaks or early valve failure. Over-tightened compression nuts may deform ferrules and create leaks. Do not reuse damaged ferrules; when necessary, cut back the pipe and install a new ferrule. Avoid sweating valves without protecting seals or removing internal parts. Do not twist while inserting push-fit fittings, and always follow manufacturer depth marks.
Common trouble points include a frozen or leaky stop that forces a main shutoff, misapplied PTFE tape that causes threaded leaks, and tightening outlet nuts without a backup wrench. Keeping spare parts available and following proper tightening guidance helps reduce repeat repairs.
Common Problems And Quick Repairs For Angle Stops
Homeowners often encounter small leaks and frozen handles with angle stops. A quick assessment shows whether a simple fix is enough or a full replacement is needed for long-term reliability.
Leaks Around The Handle
In older multi-turn valves, seepage at the stem usually starts with a loose packing nut. A careful 1/8-turn tightening with an adjustable wrench may stop the leak. If water still seeps, the internal washer, O-ring, or packing may be worn and the valve may need replacement.
Hard-To-Turn Angle Stops
Stuck angle stops often result from Mineral Buildup or rust. Applying a penetrating product such as WD-40 for about ten minutes may help. Gently rocking the handle back and forth may free the valve. If the valve stays frozen or the handle feels brittle, replacement is safer than forcing it and risking a flood.
Weeping Compression Joints
A persistent leak from a compression joint usually indicates a misaligned ferrule or damaged pipe end. To fix it, loosen the nut, reseat the ferrule, and clean the pipe with emery cloth. If the ferrule is damaged or worn, cut back the pipe, fit a new ferrule, and tighten carefully without over-compressing it.
When To Upgrade The Valve
Homes with frequent leaks, frozen handles, visible corrosion, or valves over ten years old should consider modern angle stops. A Quarter-Turn Upgrade to a ball-type stop improves shutoff speed, resists Mineral Buildup, and increases emergency reliability.
Fast Repair Checklist
- For stem drips, tighten the packing nut slightly and recheck.
- Use Penetrating Oil and gentle motion for stuck valves.
- For compression leaks, reseat the ferrule or cut back the pipe and install a new ferrule.
- Upgrade to quarter-turn stops when valves freeze or leak repeatedly.
Regularly exercising angle stops and checking for corrosion helps identify issues early. Promptly addressing leaks, stuck valves, or weeping joints prevents larger repairs and maintains Angle Stop Reliability.
Final Thoughts
This Plumbing Angle Stops Guide shows why small fixture shutoff valves are so important. They let homeowners shut off one fixture without disrupting water to the whole house. Selecting the proper material, valve operation, and connection style makes future repair work simpler. It can also lower the chance of water damage during fixture upgrades and maintenance.
For best performance, the industry often recommends lead-free, quarter-turn brass 1/2 x 3/8 stops. Integrated arrestors are also useful where water hammer is a concern. Homeowners should periodically test valves and replace Plumbing Angle Stops that leak, stick, or corrode. Depending on valve type and job difficulty, parts may range from $6 to $60, while professional installation may cost $75 to $200.
When installation feels uncertain, hiring a licensed plumber is the safer option. A plumber can ensure code compliance and provide warranty-backed work. That approach helps protect fixtures, reduce risk, and make future maintenance easier. It also follows best practices in Angle Stops Plumbing for modern residential installations.
