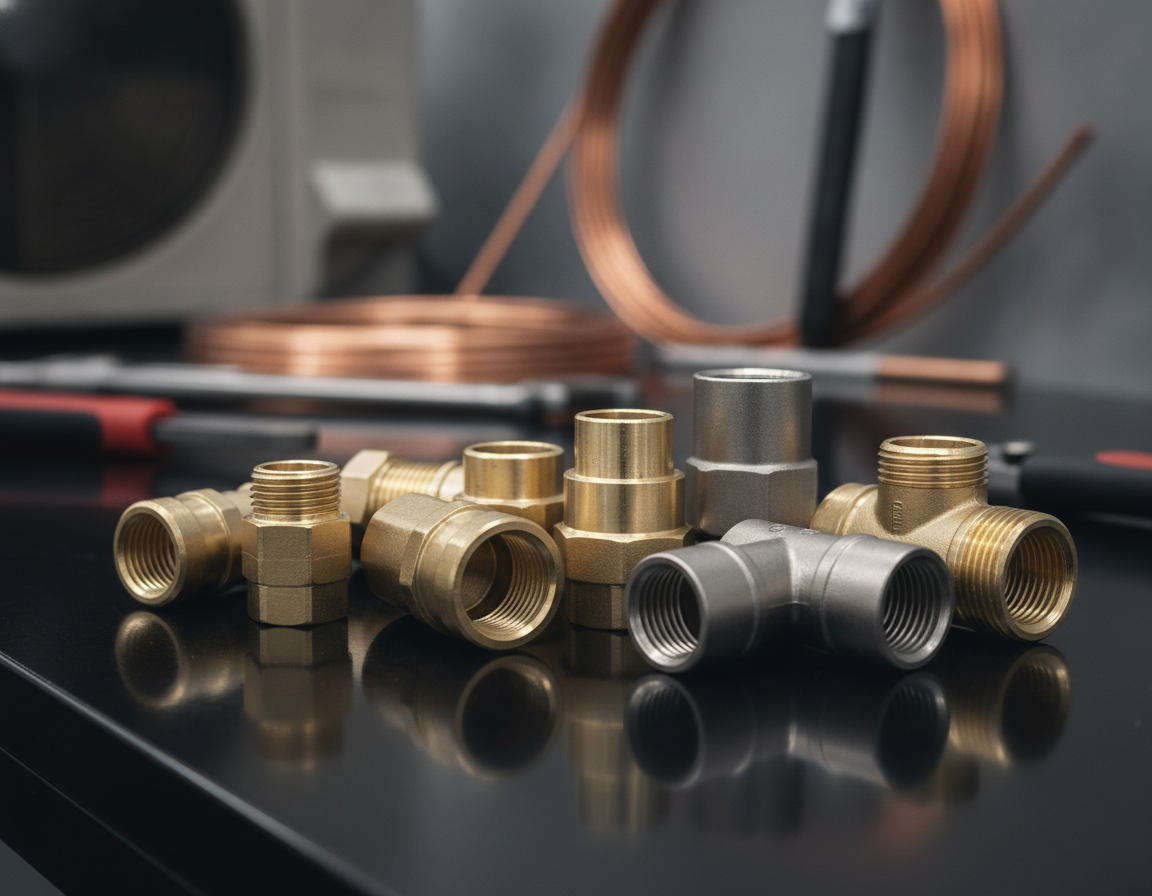

Female compression fittings give installers a clean and efficient approach for connecting pipes and tubing. They eliminate the need for solder or welded joints. This guide delves into the purpose of female compression fittings, showing how the compression nut and ferrule ensure a tight seal. It also explains their importance in both plumbing and HVAC applications.
3/8 Compression Coupling
Choosing high-quality pipe fittings can significantly reduce energy losses. This also helps stop refrigerant or water leaks, which can damage the environment. HVAC systems, which include components like compressors, condensers, expansion valves, and evaporators, rely on robust connections. Specifying the appropriate female compression fitting and compatible materials—such as brass, copper, stainless steel, PVC, or PEX—is essential for long-term system performance.
Across plumbing applications, PEX or PVC with compression fittings are frequently used for their ease of service and low heat exposure. In comparison, refrigeration lines require fittings that can handle thermal fatigue and preserve a seal across a wide temperature range. InstallationPartsSupply.com and its product lines serve these needs, supplying common sizes and parts such as ferrules and compression nuts.
Main Points
- A Female Compression Fitting uses a nut-and-ferrule system to seal without soldering.
- Selecting the right material—brass, copper, stainless, PVC, or PEX—reduces the risk of corrosion and failure.
- Proper fittings reduce energy loss and reduce refrigerant or water leaks in HVAC and plumbing systems.
- Helpful compression fitting guides and suppliers like InstallationPartsSupply.com support part selection.
- Check ferrules and tighten per manufacturer torque to support a long-lasting seal.
Understanding HVAC And Plumbing Uses For Compression Fittings
Compression fittings join pipes and tubing without solder or welding. They are ideal for copper, PEX, PVC, and stainless lines where heat or flame is not practical. Many professionals source parts from Installation Parts Supply to improve consistent quality and fit.
What Compression Fittings Are And How They Seal
A compression fitting works with a nut and a ferrule olive pressed against the pipe by the fitting body. As the nut tightens, it squeezes the brass ferrule or sleeve, which locks onto the outer pipe and forms a seal. This setup explains the common question of what is a compression fitting by showing how mechanical compression creates a leak-tight joint.
HVAC Vs Plumbing Fittings: Key Differences
HVAC fittings must tolerate refrigerants, wider temperature swings, and thermal fatigue. Plumbing fittings usually handle potable water, wastewater, and pressure from building systems. In HVAC vs plumbing fittings, selection depends on media, service temperature, and pressure ratings.
HVAC systems like split systems, VRF, and rooftop units often use copper fittings and brazed joints for refrigerant lines. Plumbing work favors PEX compression and PVC for drains, where solvent welds or crimp systems are common.
Compression Fitting Materials: Brass, Copper, Stainless Steel, PVC, And PEX
Copper fittings deliver excellent thermal conductivity and corrosion resistance. Brass parts, including the brass ferrule, resist wear and are common in many compression fittings. Stainless steel is often chosen for corrosive or high-pressure environments.
PEX compression fittings are commonly used for domestic water lines because it withstands freeze-thaw cycles and is flexible. PVC continues to be a low-cost option for drains and certain chilled-water circuits when pressure is low.
| Material Type | Common Use | Benefits | Drawbacks |
|---|---|---|---|
| Copper Components | Refrigerant circuits plus potable-water lines | Conductive, durable, solderable | Higher price and possible denting or damage |
| Brass Parts | Compression fittings, nuts, and ferrules | Strong machinability with corrosion protection | Possible galvanic issues with dissimilar metals |
| Stainless Steel | Harsh, high-pressure environments | Very durable, corrosion-resistant | Higher cost and more difficult machining |
| PEX Pipe | Residential hot and cold water | Freeze-resistant with flexible handling | Needs compatible PEX compression hardware |
| PVC | Drains and low-pressure chilled water | Inexpensive, easy to install | Not ideal for high-temperature or high-pressure work |
How Correct Fitting Selection Improves Efficiency And Leak Prevention
Using the correct fitting helps reduce leak risk and maintains system pressure. Within refrigeration systems, a poor joint can release refrigerant and lower efficiency. Proper seals and compatible materials cut maintenance and lower energy waste.
Using correct ferrule olive type and matching copper fittings or PEX compression hardware helps prevent galvanic corrosion and thermal fatigue. This approach supports service life and keeps HVAC and plumbing systems running efficiently.
Understanding Female Compression Fittings
A female compression fitting secures a pipe or tube end when a nut compresses the ferrule olive against the fitting body. This design enables tight connections without soldering, making it common in plumbing and HVAC. Related unions and adapters make possible quick disassembly for service or instrument changes.
Common Configurations And Definition
A typical assembly includes a female compression nut, a ferrule olive, and the fitting body. The nut connects to the fitting body and compresses the ferrule to grip the tube. Common systems include unions, straight fittings, or elbow bodies to adapt direction and access during maintenance.
Materials And Compatibility
Copper and brass are often selected for refrigerant fittings and hot-water lines due to their ability to tolerate thermal cycles and resist deformation. Stainless steel is used in high-pressure or corrosive environments. PVC and PEX commonly serve condensate and domestic water runs, but they require proper inserts or specific ferrules for secure joints.
Common Uses In Plumbing, HVAC Refrigerant Lines, And Instrumentation
In plumbing, female compression fittings link stops, valves, and supply lines without solder. In HVAC, technicians use them on refrigerant fittings between compressor, condenser, and evaporator where service access is critical. Gas lines and instrumentation often use compression parts for leak-tight, serviceable connections.
Comparing Female Compression Fittings, Male Fittings, And Adapters
Female fittings accept a male end and form the receiving thread, while a 3 8 Male Compression Fitting provides that mating male component for tubing or ports. A 3/8 Valve Adapter helps technicians interface service valves and gauges to the system. Choosing matched materials prevents galvanic corrosion and keeps joints reliable under pressure and thermal change.
| Part | Common Material | Common Use | Practical Note |
|---|---|---|---|
| Female nut | Brass material | Water supply lines and valve fittings | Change it if cracked or stripped |
| Ferrule sleeve | Brass/stainless steel | Creates seal on copper, brass, some PEX | Usually single-use after compression |
| Main fitting body | Brass and stainless materials | Instrumentation and HVAC refrigerant fittings | Check pressure rating and media compatibility |
| 3 8 male compression adapter | Brass/copper options | Male connection for female ports and small lines | Check thread and seat compatibility |
| Small valve adapter | Brass | Service gauges, manifold connections | Confirm sealing components before use |
| Installation Parts Supply product line | Several material options | Supplier for matched fitting components | Buy compatible ferrules and nuts for system longevity |
Compression Fitting Types, Sizes, And Adapters For Plumbing And HVAC
This part explains the various fitting types, sizes, and adapters essential for plumbing and HVAC projects. Installers use couplings, elbows, unions, and adapters to manage line routing, component isolation, and service access. The selection of these components significantly impacts system performance, including pressure rating, temperature limits, and reliability.
Compression couplings and unions allow the creation of removable joints for maintenance and testing. Couplings are best suited to straight connections, while compression unions are better suited for components that need to be disconnected without disrupting the line. For small runs, a 3/8 Compression Coupling is often used in instrumentation and refrigeration applications.
Elbows and adapters help with tubing routing around obstacles and for connecting different types of fittings. A 3 8 Male Compression Fitting can connect to a female port or adapter, facilitating the integration of service valves and gauges. Installation Parts Supply catalogs offer a wide range of these components, making possible quick access on job sites.
Choosing the right size is critical, depending on the tube’s outside diameter and the ferrule and nut set. Ensure that the female compression fitting size matches the tube OD to prevent leaks. For 3/8″ applications, verify ferrule compatibility and torque specifications. You should also confirm the system’s maximum pressure and temperature ratings before making a final selection.
The Max Adaptor and 3/8 Valve Adapter are useful for connecting gauges, service ports, and small refrigerant lines. These adapters simplify the process of charging and diagnostics in HVAC systems. In HVAC, a 3/8 Valve Adapter is commonly used to link manifold hoses to service valves on compact systems.
Selecting the material means balancing between durability and corrosion resistance. Stainless steel offers durability and corrosion resistance, making it suitable for harsh environments. Brass and copper are commonly selected for refrigerant circuits and heat transfer lines due to their balance of machinability and corrosion protection. PVC and PEX can be used in low-pressure condensate and water lines but not for high-pressure refrigerant service.
Fitting sustainability is affected by leak prevention and recyclability. Well-sealed metal fittings can lower refrigerant emissions and can be recycled at the end of their life. Choosing quality parts from dependable suppliers reduces failures and minimizes long-term environmental risk.
Use the comparison below to select between common options by application, pressure, temperature, and reusability.
| Fitting Type | Primary Application | Max Pressure Typical | Operating Temperature Range | Reusability |
|---|---|---|---|---|
| Compression coupling in brass | Instrumentation, small water lines, and refrigerant service | Up to 3,000 psi depending on specification | Approximately -65°F to 250°F | Limited, because ferrules are often replaced |
| Compression union in brass or stainless | Removable service connections | As high as 2,500 psi | Typical range from -65°F to 300°F | High; designed for disconnects |
| 3/8 compression connection | Small plumbing, refrigeration, and instrumentation use | Rating varies by system and material | Confirm material temperature rating | Moderate, though often replaced during service |
| 3 8 male compression connector | Connection to service valves and gauges | Refrigerant-rated when made and specified correctly | Works across common HVAC cycles when specified | Reusable if inspected and intact |
| Brass/stainless Max Adaptor | Service-tool connection for gauge and valve interfaces | High when designed for service-tool use | Handles typical HVAC thermal cycling | High reuse because it is service-focused |
| PVC and PEX fittings | Water and condensate lines at low pressure | Low, with no high-pressure refrigerant use | 32°F to 140°F typical | Reusable only in some applications with UV limits |
Before buying, check Installation Parts Supply or other reputable distributors for part numbers, material options, and pressure ratings. Make sure the chosen 3/8 Valve Adapter or Max Adaptor matches both the tubing OD and the service fitting type to avoid mismatches on site.
How To Install And Maintain Compression Fittings
Good installation begins with clean, square pipe ends and the right parts. For refrigerant lines in HVAC systems, use copper and brass. For condensate lines or chilled-water systems, PVC or PEX is best. Always refer to manufacturer specs and ASME B31.5 to minimize energy loss and leaks.
Installing compression fittings correctly
1. Begin by cutting and deburring the tube to a square face. 2. After that, slide the nut and ferrule onto the pipe in that order. 3. For soft plastic tubing, insert pipe inserts to keep the tube round before assembly. 4. Hand-tighten the nut, then use the two-wrench technique to finish the joint.
Recommended tools and techniques
Work with two wrenches to hold the fitting body and turn the nut to prevent tube twist. Observe torque recommendations from the fitting maker or Installation Parts Supply when available. A common method is to snug by hand, then add a limited number of wrench turns.
Where pipe inserts should be used
Pipe inserts are essential for soft plastic tubing like PEX or thin-wall PVC to prevent ovalization and ensure a leak-free seal. Do not install inserts in solid copper or thick-walled metal tubing, where inserts can interfere with proper ferrule compression.
Common mistakes and ferrule removal
Do not under-tighten or over-tighten. Too little tightening can cause leaks; over-tightening deforms the ferrule and can make ferrule removal difficult. Most ferrules should be treated as single-use parts; plan to replace them when disassembling a joint.
Safe ferrule removal steps
Shut off the supply and relieve pressure first. Grip the fitting body with one wrench while loosening the nut with a second. Remove the nut and slide out the ferrule. If the ferrule is stuck, apply penetrating oil, use a ferrule puller, or carefully cut the ferrule off without nicking the pipe.
How to install a 3/8 Valve Adapter
For small lines like a 3/8″ valve connection, prepare the tubing the same way and follow the two-wrench technique. Several steps for installing a 3/8 Valve Adapter mirror larger fittings but require careful attention to torque guidance to avoid crushing the tube or the adapter threads.
Maintenance and inspection guidance
After bringing the system up to pressure, inspect joints for weeps and tighten slightly if needed. Make regular checks for corrosion and thermal fatigue, particularly on refrigerant circuits. Do not place compression joints where vibration will loosen them over time.
| Step | Required Action | Best-Practice Tip |
|---|---|---|
| Prepare | Prepare a clean, square, deburred pipe end | Use a good tubing cutter and deburring tool |
| Fit-Up | Install the nut and ferrule before inserting the tube | Use inserts on PEX or PVC to hold tube shape |
| Tightening | Hand-tighten, then use two wrenches | Follow torque guidance from manufacturer |
| Leak Test | Test under pressure and check joints | Check for small leaks and tighten slightly when appropriate |
| Ongoing Service | Inspect regularly, replace ferrules when disassembled | Stock spares from Installation Parts Supply for fast repairs |
Final Thoughts
Choosing the right compression fitting is critical for plumbing and HVAC work. The material choice, whether brass, copper, stainless steel, PVC, or PEX, must match the service type. That helps maintain reliability and extends system life. Quality parts and careful installation can lower energy losses and refrigerant leaks, preserving performance and environmental health.
Compression fittings deliver a leak-free, solder-free solution. They include a nut, ferrule, and body. For a dependable seal, follow these steps: square-cut and deburr the tubing, use the two-wrench technique, and replace ferrules when reused. These steps support long-lasting, leak-tight connections in various applications, from copper piping to instrumentation.
For specific needs, such as 3/8″ lines, 3/8 Compression Coupling, or 3/8 valve adapters, make sure you match size and pressure ratings to the task. Reliable parts from trusted suppliers are important. Installation Parts Supply resources can assist in finding compatible fittings and adapters. Ongoing checks and good part selection support system efficiency and compliance.
To summarize, dedicating time to material selection and correct assembly is vital. That helps create durable, leak-free connections. It supports optimal performance, fewer repairs, and less environmental harm.
