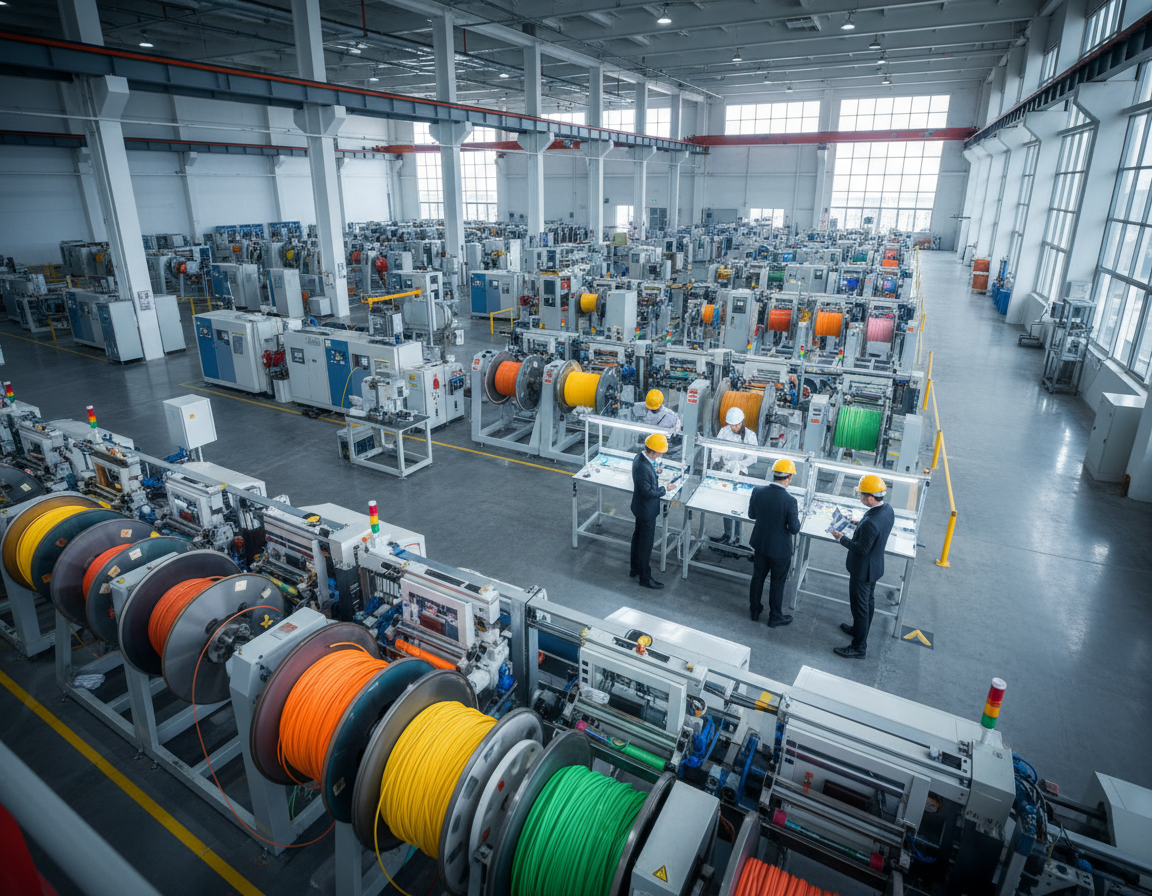

The FTTH Cable Production line is a unified series of modules that transforms optical fiber into finished drop and distribution products with repeatable quality.
Fiber Secondary Coating Line
This overview helps operations leaders, process engineers, procurement teams, and students in the U.S. who evaluate how industrial manufacturing equipment turns fragile fiber into robust cables for service and communication networks.
At its core, the full-chain objective is simple: protect the fiber, maintain low optical loss, add strength for installation, and produce a cable that survives both indoor and outdoor environments.
Professional-grade equipment provides reliable tension regulation, synchronized drives, standardized process windows, and clear, auditable documentation for customer acceptance. This article helps align the line setup, materials, and validation plan to the intended product instead of buying machines first and correcting later.
You’ll map stages such as fiber preparation, buffering and coating, organization/stranding, integration of strength elements, jacketing (outer sheath extrusion), optional armoring, and final testing and packaging.
Key points: A properly specified line minimizes defects and keeps delivery schedules predictable. Choose process alignment before purchasing machines to save time and cost.
How A Fiber Optic Cable Production Line Works Today
Where last-mile drop and distribution demands meet factory practice.
Modern fiber manufacturing lines stitch delicate glass into finished products used in U.S. broadband deployments. Last-mile drop cable and FTTH drop demand drives high volumes, so manufacturers focus on consistent handling and standards-based output.
Core Modules And Material Flow
Material progresses through a defined sequence: pay-off → guiding + tensioning → secondary coating/color application → organization and SZ stranding → strength-element feed → jacketing (sheathing) → cooling/curing → take-up and in-line testing.
Modules → Outcomes
Consistent fiber handling reduces attenuation and protects signal integrity for data and communications. Consistent jacketing helps installation and connector preparation. In-line monitors detect loss events before reels exit production.
- Indoor vs. outdoor: different jacket compounds and buffering.
- Armored designs add steel tape or wire for added crush and rodent resistance.
- Drop designs typically use tight-buffered fibers and easier connector preparation.
Buyers should treat lines as modular systems. Factories can add armoring or remove steps to match the cable design. Throughput is limited by curing and dimensional control, not only motor speed.
Define Your Product And Data Standards Before You Buy Equipment
Start with a clear product map that defines the cable type, fiber/core count, service environment, and user scenarios. This early definition narrows which modules the line must include, from tight-buffer units to SZ stranding and jacket extrusion.
Select Standards, Measurable Targets
Select fiber standards such as ITU-T G.652D or bend-insensitive G.657 A1/A2 based on required bend performance and route constraints. Define loss budgets, tensile targets, crush and bend limits, and environmental durability before vendor selection.
- Map the exact product type and core/fiber count to define required modules and control needs.
- Define attenuation (loss) budgets and mechanical strength targets to guide material selection.
- List required materials (buffer polymers, jacket compounds) and verify U.S. sourcing availability.
Data Standards, Traceability & Validation
Convert targets into factory information: logged process variables, batch traceability, and required customer test reports for acceptance. Plan R&D pilot runs to validate settings and shorten scale-up time.
Fiber Draw Tower
| Goal | Manufacturing Implication | Common Action |
|---|---|---|
| Low attenuation | Tension and alignment control | In-line attenuation checks |
| Higher tensile strength | Strength member choice | Aramid/metal integration |
| Bend-tolerant performance | Fiber selection | Use G.657 variants |
Build Quality Into Optical Fiber: Core, Cladding, Coating Essentials
Strong optical performance begins in the glass, where core purity and cladding design set the ceiling for signal loss.
Core + cladding make up the core layer structure: a solid, ultra-pure silica core transports light while lower-index cladding keeps it confined. That geometry is the basis for low-loss transmission and stable optical behavior in finished cables.
From Preform To Fiber Draw
Production starts with preform laydown and consolidation. Moisture removal via a high-temperature furnace cuts defects that raise attenuation.
The draw process pulls glass into a micron-scale strand. Geometry control at this stage links directly to steady attenuation and predictable transmission performance. A single blank can produce about 5 km of fiber, so stability saves time and cost.
Primary Coating And Color Coding
Primary coating protects against scratches and handling damage; it is not the primary strength element. Color identification simplifies splicing, troubleshooting, and downstream fiber management.
- Preform consolidation: remove contaminants and moisture.
- Draw: control diameter and tension for low loss.
- Coating and color: protect and identify each fiber.
| Layer Element | Role | Buyer Checklist |
|---|---|---|
| Core | Transmit light while minimizing attenuation | Define purity and loss specifications |
| Cladding | Contain light, manage modal behavior | Verify index profile and geometry |
| Coating (primary) | Scratch protection and color ID | Verify coating adhesion and color coding |
FTTH Cable Production: Step By Step Line Setup From Buffering To Sheathing
A practical line setup takes each fiber from pay-off through buffering, stranding, and the outer jacket to a finished reel.
Secondary coating & fiber coloring stations apply dual-layer UV-cured coatings (≈250 µm) and one-to-twelve-channel color coding for tracking and traceability. Consistent UV cure rates and steady web tension reduce mix-ups and rework.
Buffering, Materials
Tight buffering (600–900 µm) protects handling and simplifies connector preparation. Choice of Hytrel, PVC, or LSZH changes flexibility, temp range, and flame/smoke behavior.
SZ Stranding, Organization
SZ stranding uses alternating lay to balance geometry and give cable flexibility. Servo control for up to 24 fibers keeps lay pitch consistent and lowers attenuation risk.
Strength Members And Jacketing
Aramid yarn is the common tensile element; it provides pull strength without stressing the fibers during installation.
Next comes outer jacket extrusion with PVC, PE, or LSZH. Speeds often run 60–90 m/min and demand tight OD and concentricity control.
Armoring & Control Points
If crush or rodent resistance is needed, add steel tape or wire armor with adjustable tension control. Operators monitor tension, cure state, concentricity, OD, and cooling to maintain quality.
| Process Step | Key Control Point | Typical Value |
|---|---|---|
| Secondary coating process | UV cure plus tension | ≈250 µm, consistent cure |
| Tight buffering | Choice of material | 600–900 µm (Hytrel/PVC/LSZH) |
| Sheathing/jacketing | Concentricity and OD | 60–90 m/min |
Optimize Production Speed And Process Control With Modern Automation
When factories push for 24/7 output, synchronized controls and tension systems become the backbone of reliable manufacturing.
PLC, HMI, Closed-Loop Tension For Steady Operation
Modern lines use Siemens PLC + HMI platforms to synchronize modules, manage recipes, and record process information. Closed-loop tension control safeguards fiber during start/stop events and speed changes.
Fiber Draw Tower
Match Speed To Curing And Dimensional Control
Line speed often caps where curing, cooling, or extrusion dimensional control cannot keep up. UV cure completeness, water trough stability, and chill capacity set the real ceiling.
Layout, Changeover, And Procurement
Factory layout affects uptime: proper pay-off/take-up placement and protected fiber paths reduce damage and shorten changeovers.
- Use quick-change tooling and documented setup steps to speed changeovers.
- Specify industrial power (380 V AC ±10%) and a typical ≤55 kW load when ordering equipment.
- Require remote diagnostics, parts availability, and responsive service from the equipment company.
| Focus | Operational Value | Typical Goal |
|---|---|---|
| Synchronization | Reduced scrap and repeatable runs | Siemens PLC/HMI platform |
| Tension control | Protects fiber; keeps loss stable | Closed-loop with high accuracy |
| Layout & changeover | Less downtime | Quick-change tooling, staging |
Testing And Quality Control To Reduce Loss And Improve Delivery Reliability
Robust testing and clear quality control convert raw fiber into reliable, field-ready cable reels.
Start with optical validation. In-line attenuation testing plus return loss checks confirm signal performance before reels ship.
Optical Checks, Signal Integrity
Attenuation testing is the main guardrail against performance complaints. Higher loss readings point to handling damage, microbends, or contamination.
Return loss checks target reflections that can affect sensitive links and tight network margins.
Mechanical, Environmental Validation
- Tensile pull tests verify strength members and installation safety.
- Crush and bend tests simulate real-world stresses during installation.
- Temperature cycling, moisture soak, and vibration tests reduce risk for outdoor and aerial routes.
| Test Type | Objective | Typical Decision |
|---|---|---|
| Loss test | Measure loss per km | Pass/fail vs. spec |
| Mechanical validation | Confirm pull/crush/bend performance | Installation performance rating |
| Environmental | Simulate field conditions | Durability confirmation |
Traceability links raw material lots, in-line data, and final test results to reel IDs. Correct reeling, labeling, and protective packaging preserve quality and speed customer acceptance and delivery.
Wrap-Up
A clear manufacturing plan links product targets to the exact line modules and control limits required for reliable output. Define the FTTH product, service environment, and measurable specifications before choosing equipment or layout.
Fiber optic fundamentals—core, cladding, and coating—set the optical baseline. Careful handling upstream preserves data integrity and keeps end-product quality within acceptance limits.
Set buffering, organization/stranding, strength members, and jacket selection to match installation conditions. Use automation and closed-loop controls to maintain speed, reduce scrap, and keep delivery predictable in U.S. markets.
Operational discipline matters: implement comprehensive testing, reel-level traceability, and documented quality systems so customers can accept reels quickly. Next step: convert these points into a purchasing checklist (spec targets, utilities, layout, and acceptance tests) before requesting quotes or trials.
